Home / Products / Compact Drivers / Intelligent / 0-10V / FLS-12-350 0-10 LA ADV

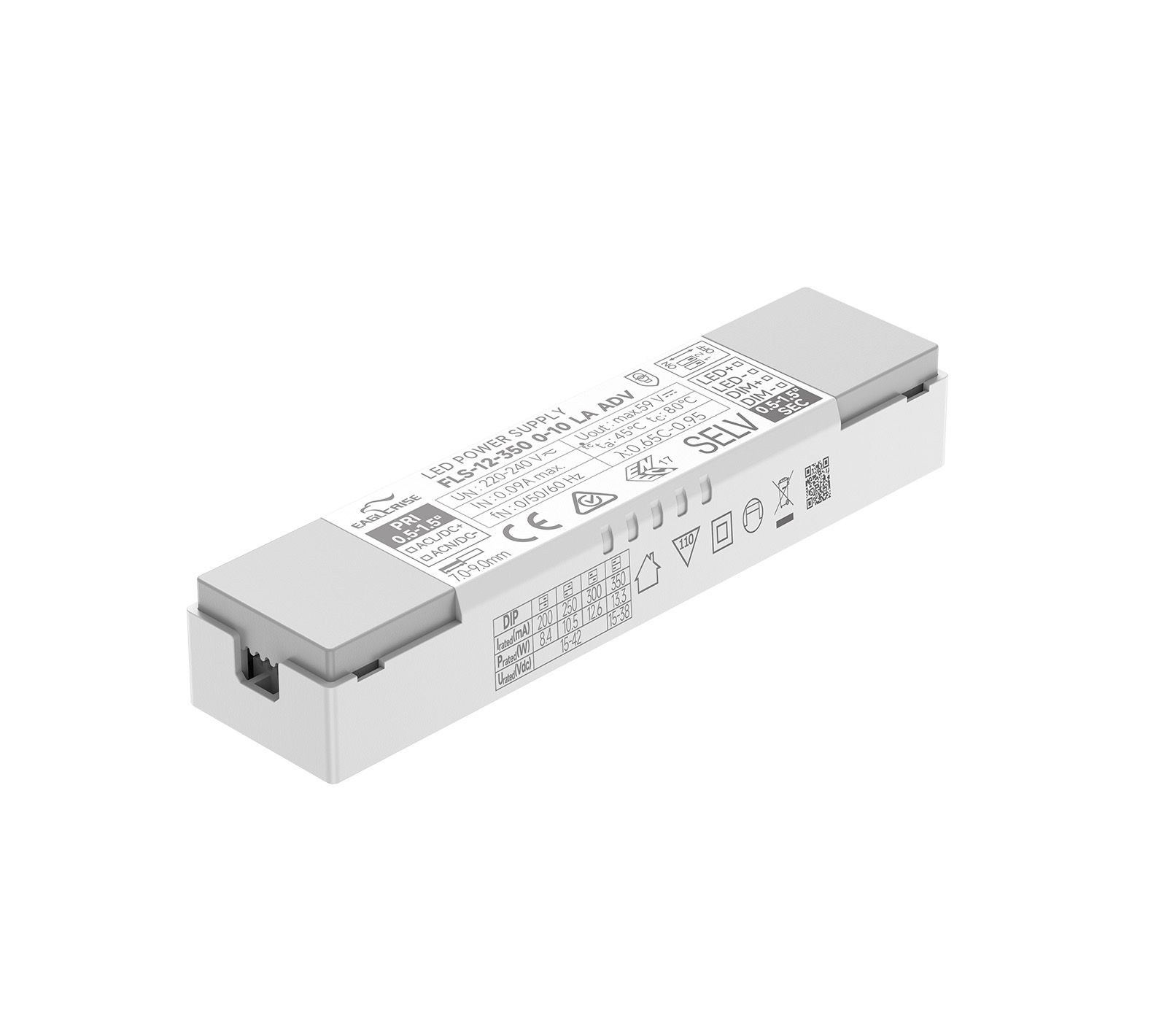

Product Image

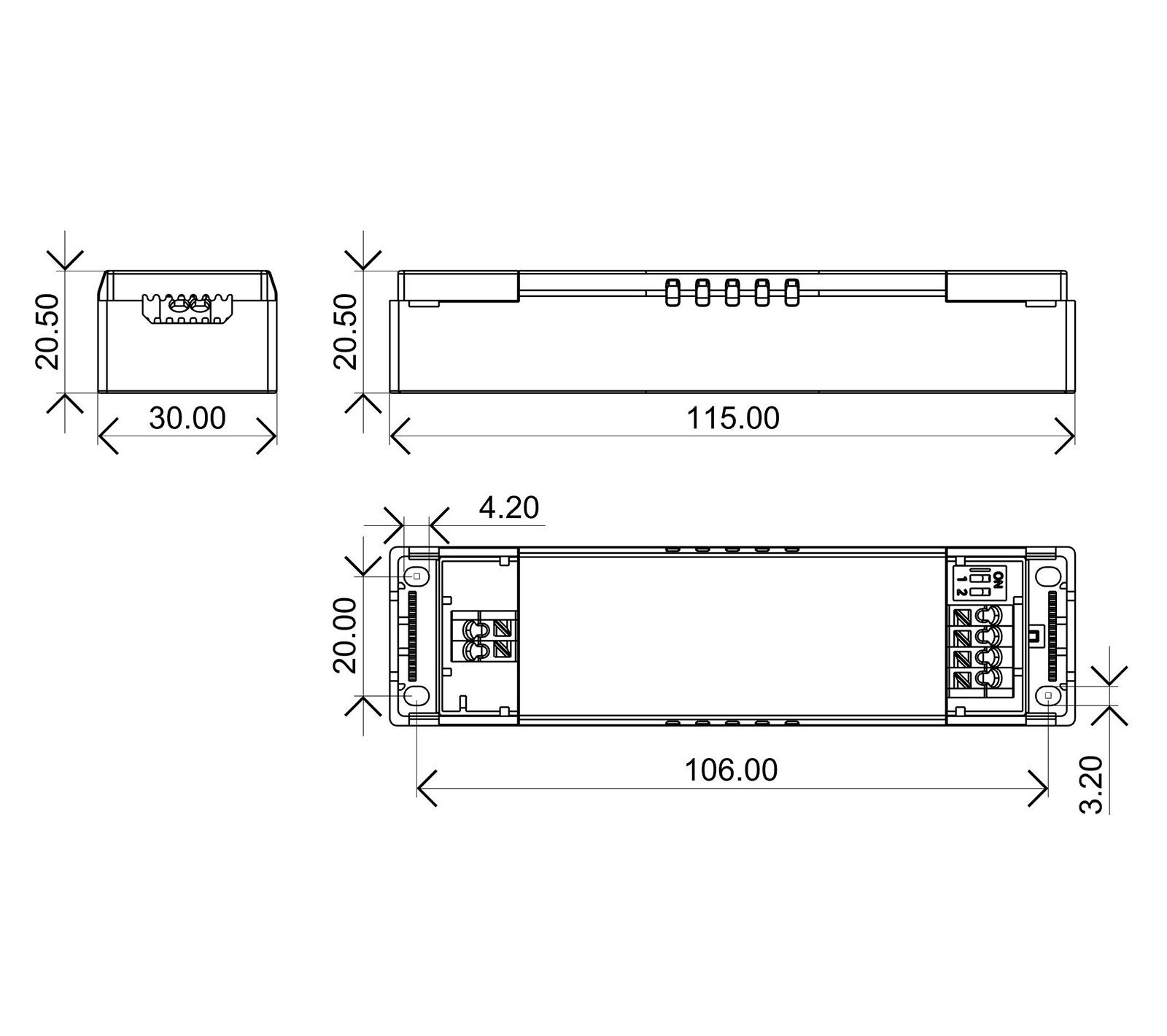

2D Line Drawing
Product Image
2D Line Drawing
12W | 200-350mA

FLS-12-350 0-10 LA ADV

Product Description:

·  For luminaries of protection Class II， SELV，Independent

·  Input Voltage 220-240VAC

·  Protections:SCP/OLP/OVP/OTP

·  Power Factor：0.95

·  Efficiency：84%

·  Support 0-10V, RX, PWM Dimming

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-12-350 0-10 LA ADV12W220-240VAC200-350mA15-42VDC84%0.95115*30*20.5mm
FLS-12-350 0-10 LA ADV spec REV A
