Home / Products / Compact Drivers / Intelligent / 0-10V / FLS-12-330 0-10 LA EXC

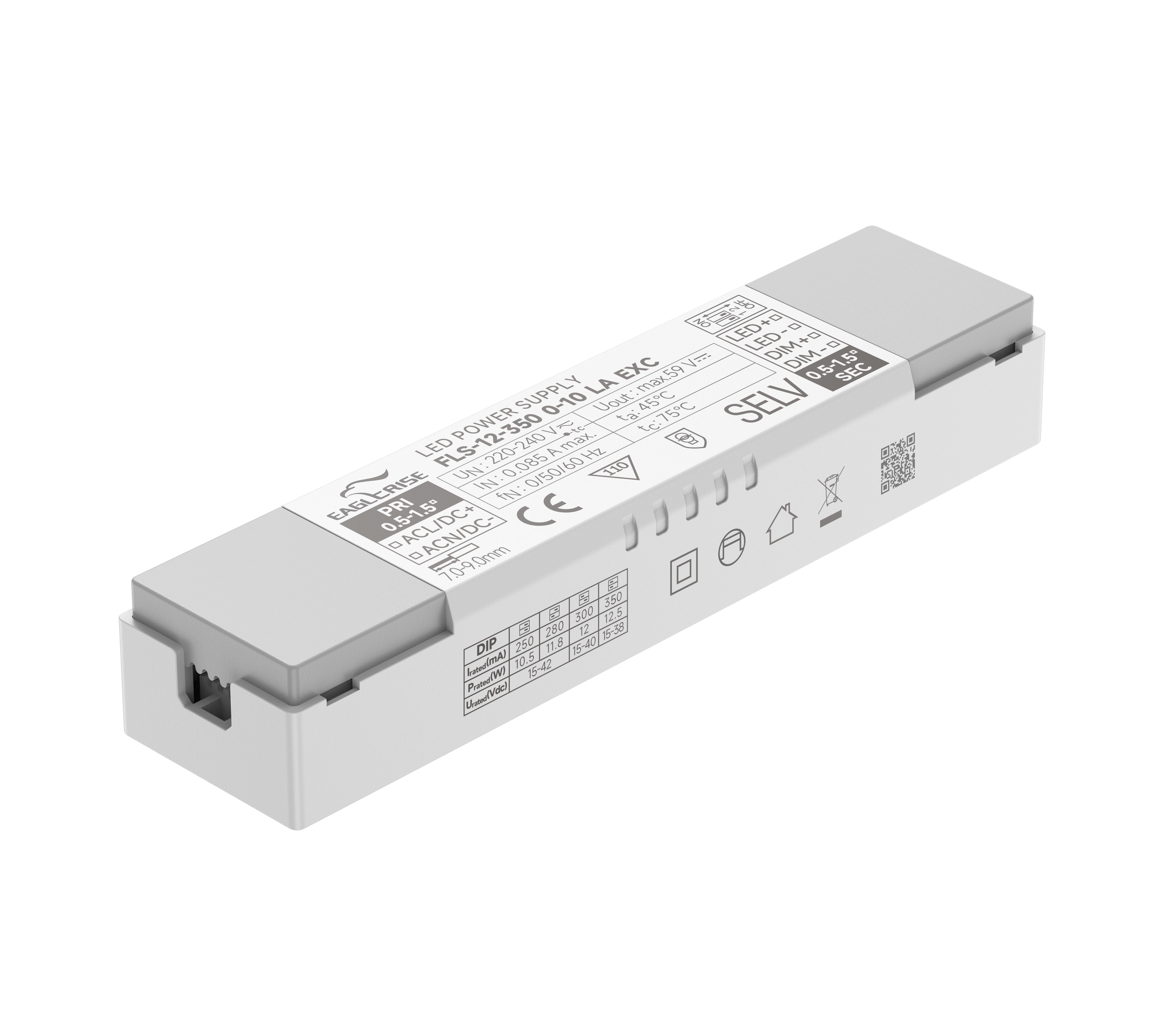

Product Image
2D Line Drawing
Product Image
2D Line Drawing
12W | 250-330mA

FLS-12-330 0-10 LA EXC

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Dimming range 1% to 100%

· Output current adjusted via dip-switch

· Efficiency>84%

· Power Factor＞0.95

· 12V Auxiliary source

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-12-330 0-10 LA EXC12W220-240VAC250-330mA15-38VDC84%0.95126*30*20.5mm



FLS-12-330 0-10 LA EXC spec REV A
Download All Files
Related Products
FLS-8-220 0-10 LA EXC
8W | 120-220mA
FLS-8-220 0-10 LA EXC
