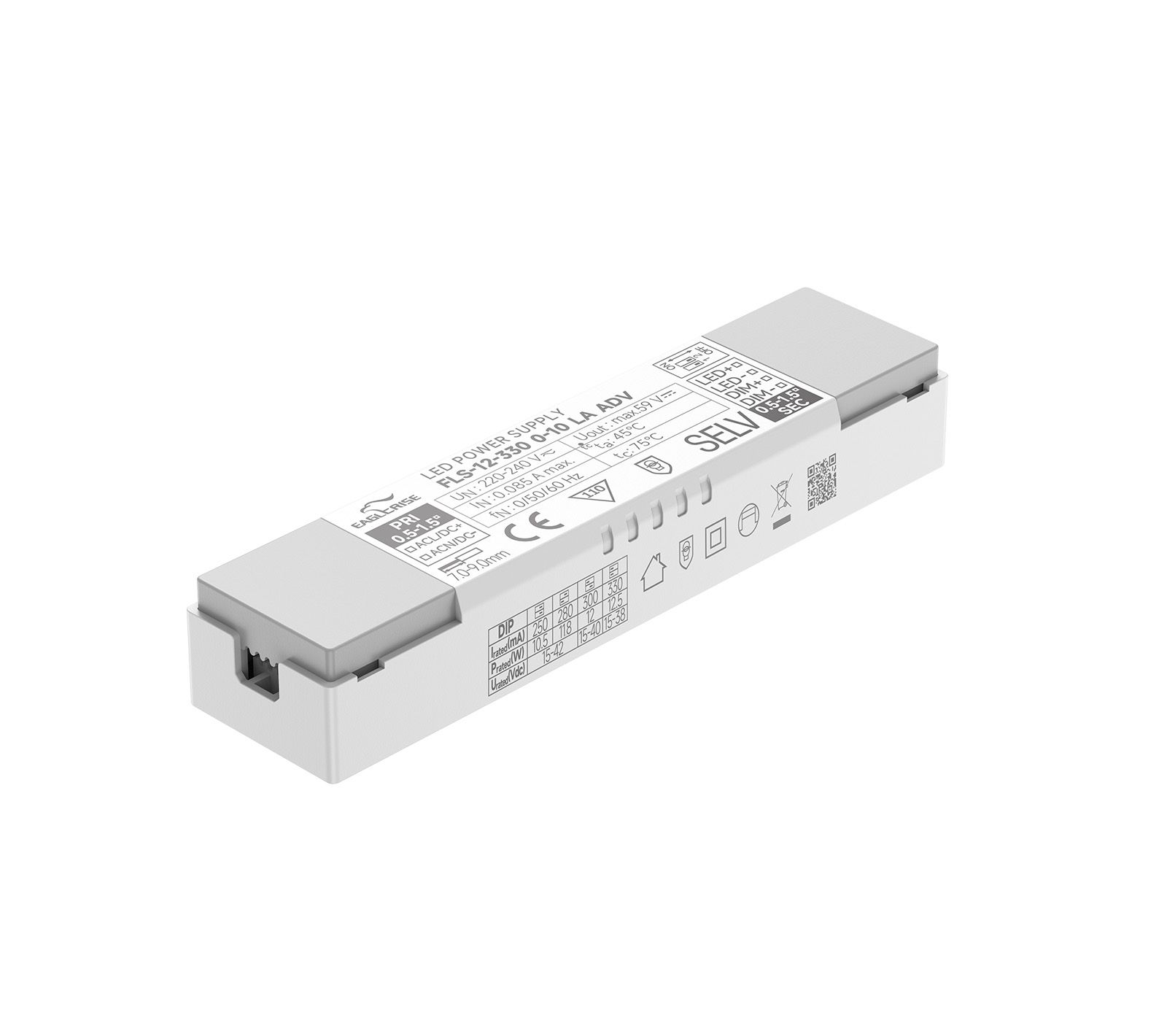

Product Image

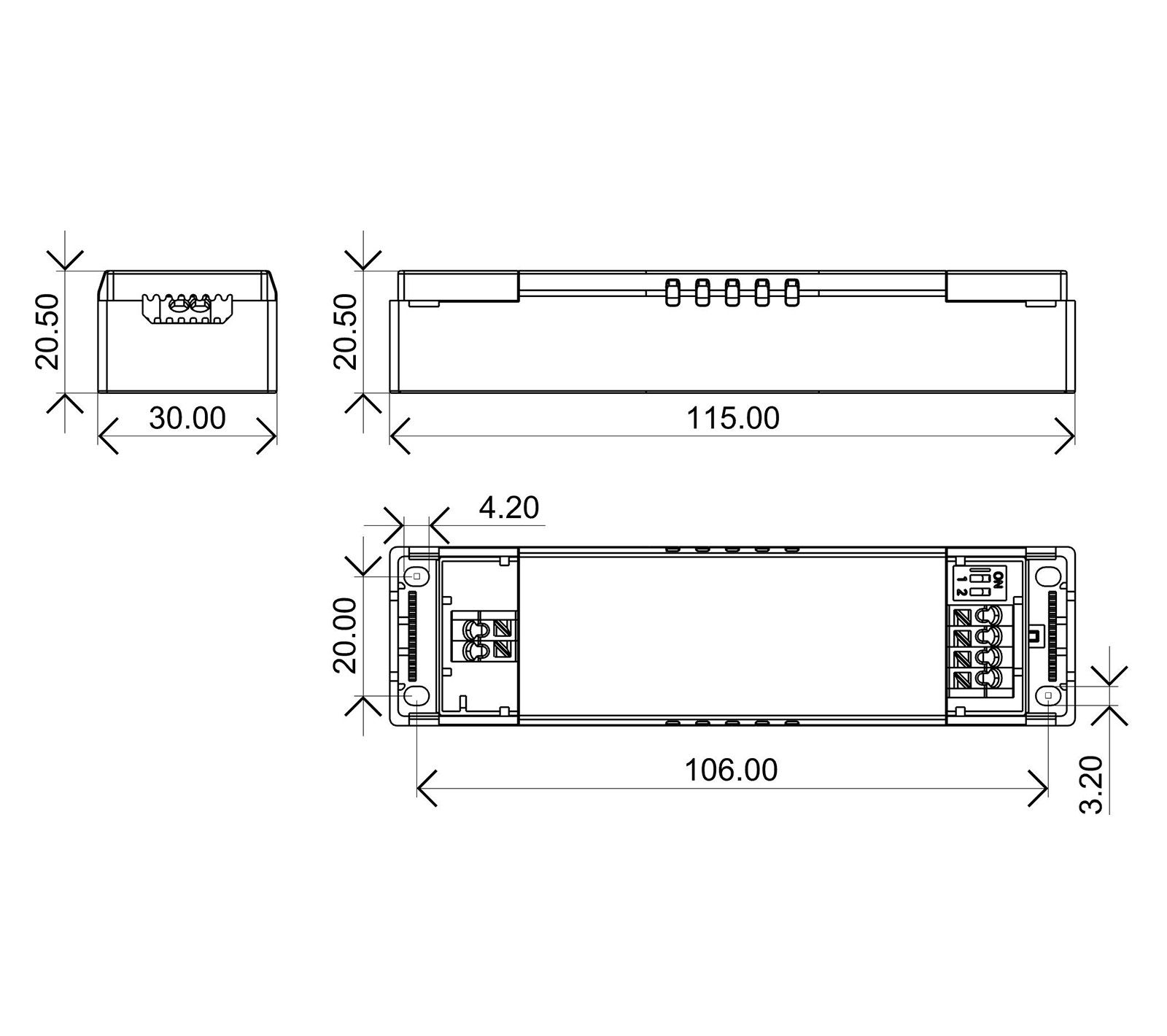

2D Line Drawing
Product Image
2D Line Drawing
12W | 250-330mA

FLS-12-330 0-10 LA ADV

Product Description:

· For luminaries of protection Class II， SELV，Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor ：0.95

· Efficiency ：84%

· Support 0-10V,RX,PWM Dimming

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-12-330 0-10 LA ADV12W220-240VAC250-330mA15-42VDC84%0.95115*30*20.5mm


FLS-12-330 0-10 LA ADV spec REV A
Download All Files
